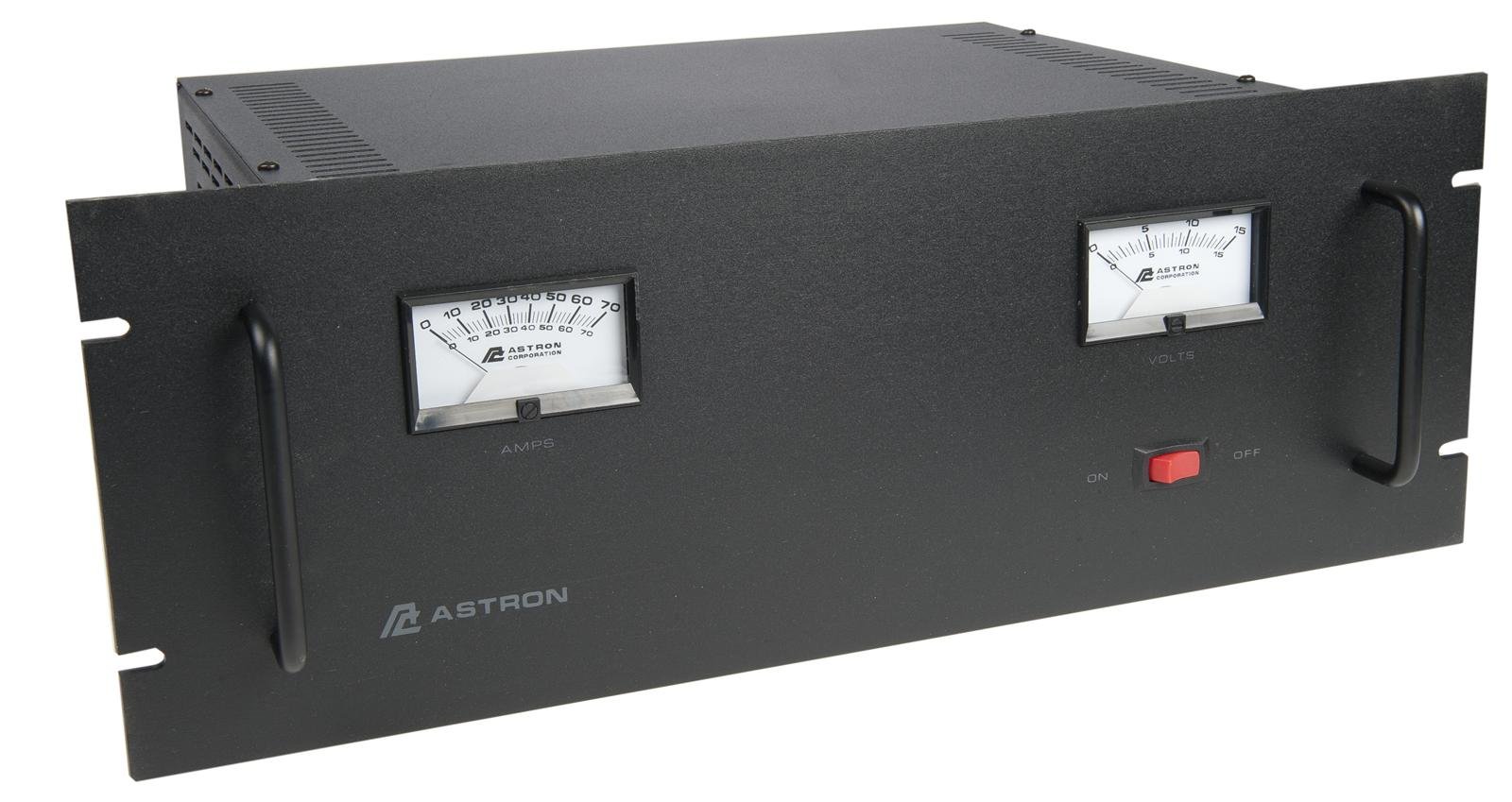

Astron RM60M

The Astron RM60M is a heavy-duty, 50 amp continuous duty linear power supply designed for demanding radio, communications, and commercial applications, featuring a standard 19-inch rack mount chassis.
Key Features and Specifications
The Astron RM60M is engineered for reliability and low noise, making it suitable for professional environments.
Output Current: It provides 50 Amps of continuous duty output, with an intermittent current surge (ICS) capability of up to 55 Amps.
Output Voltage: The nominal output is 13.8 VDC, which is internally adjustable from 11-15 VDC.
Design: As a linear power supply, it offers improved power regulation and very low ripple (less than 5mV peak to peak), which is preferred in applications that require minimal electrical noise.
Protection: The unit includes safety features like overload protection (fold-back current limiting) and overvoltage protection (crowbar protection).
Metering: It comes equipped with dual built-in analog meters for monitoring both voltage and amperage in real-time.
Form Factor: The power supply is designed for installation in a standard 19-inch equipment rack.
Cooling: It is fan-cooled and also uses a heavy-duty heat sink for thermal management during continuous operation.
Dimensions: The physical dimensions are approximately 7″ (H) x 19″ (W) x 12.5″
