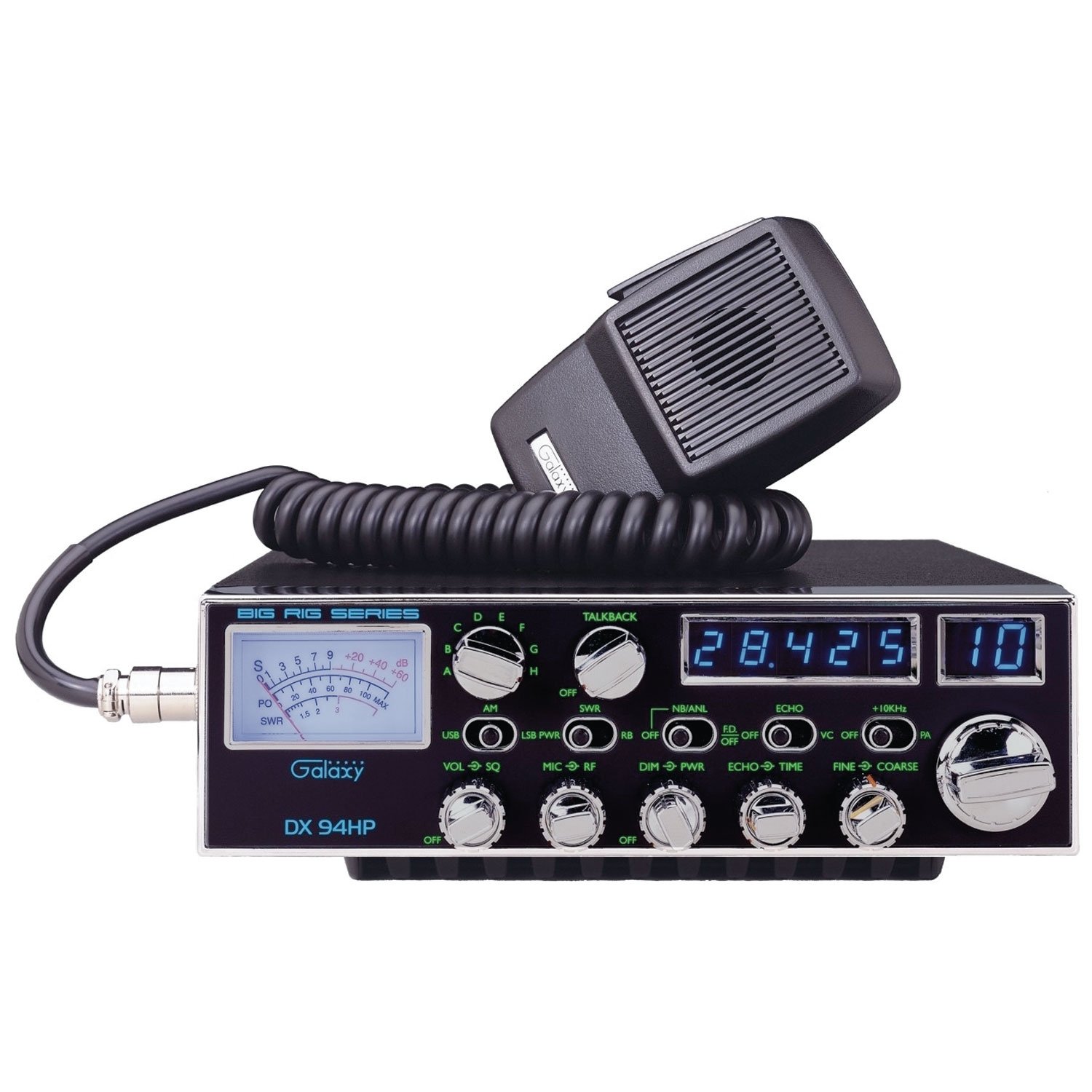

Galaxy DX-94HP

The Galaxy DX-94HP is a powerful 10-meter amateur mobile radio (ham radio) known for its high output and rich feature set, including Single Sideband (SSB) capabilities, an echo feature, and a large meter display. An FCC license is required for operation.

Key Features and Specifications

Power Output: The radio delivers over 100 watts PeP (Peak Envelope Power), utilizing four IRF520 MOSFET final transistors for strong transmissions.

Modes: It supports AM, Upper Sideband (USB), and Lower Sideband (LSB) modes, allowing for extended range and clarity compared to AM-only radios.

Display and Controls: It features a “StarLite” faceplate with backlighting and blue LEDs for the frequency and channel readouts, making it easy to read in various light conditions. It also includes a large meter for monitoring power output, SWR, and incoming signal strength.

Audio Enhancements: The DX-94HP includes an Echo and Voice Changer function with front panel controls, variable talkback, and a Roger Beep with an on/off switch.

Noise Reduction: It is equipped with Automatic Noise Limiter (ANL) and Noise Blanker (NB) circuitry to help reduce background electrical noise.

Additional Features:

Automatic SWR circuit: A built-in safety feature to protect the radio.

Variable Power Output control: Allows adjustment of the output power.

PA System: Can be used as a public address system with an external speaker.

Clarifier: Standard circuitry with coarse and fine adjustment for tuning in signals.

User and Expert Opinions

Performance: The radio is generally well-regarded for its strong performance and high power, especially when peaked and tuned by a professional. Users report clear incoming and outgoing transmissions and good range.

Audio Quality: Reviewers praise the “legendary Galaxy audio clarity” and mention that the variable talkback can be quite loud.

Build & Design: The unit is described as a large, heavy-duty mobile radio, part of the “Big Rig Series”, suitable for vehicles with extra space. It has a low-profile bottom heatsink for cooling.

Modifications: While a 10-meter radio out of the box, it is designed to be easily converted to the 11-meter Citizens Band (CB) frequency range by a technician.
