Maco M105C-HV

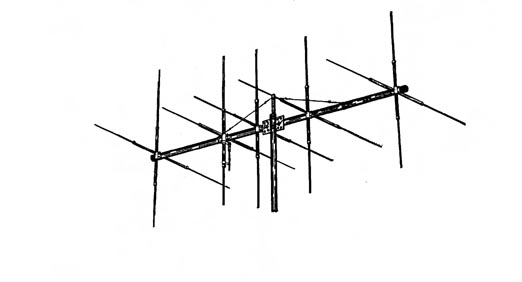

The Maco M105C-HV (also known as the M105HV) is a high-performance, 5-element dual-polarized Yagi beam antenna designed for the 10 and 11-meter bands (CB and Amateur Radio).
Key Features and Functionality
Dual Polarization: Unlike standard Yagi antennas, the “HV” version features both horizontal and vertical elements on a single 26-foot boom.
Independent Tuning: You can tune the horizontal and vertical planes separately. For example, you can set the horizontal elements for 11 meters (CB) and the vertical elements for 10 meters (Ham), or both on the same frequency.
Construction: Built from 6063-T5 aircraft alloy aluminum with swaged, slotted tubing to provide maximum strength and wind resistance up to 90 mph (145 km/h).
Technical Specifications
Specification Details
Gain 15.5 dB
Power Handling 2,000 Watts PEP (Upgradeable to 30kW with different gamma matches)
Boom Length 26 Feet
Number of Elements 5 (HV model provides dual sets)
Turn Radius 15 Feet
Front-to-Back Separation 31 dB
Weight ~35 lbs
