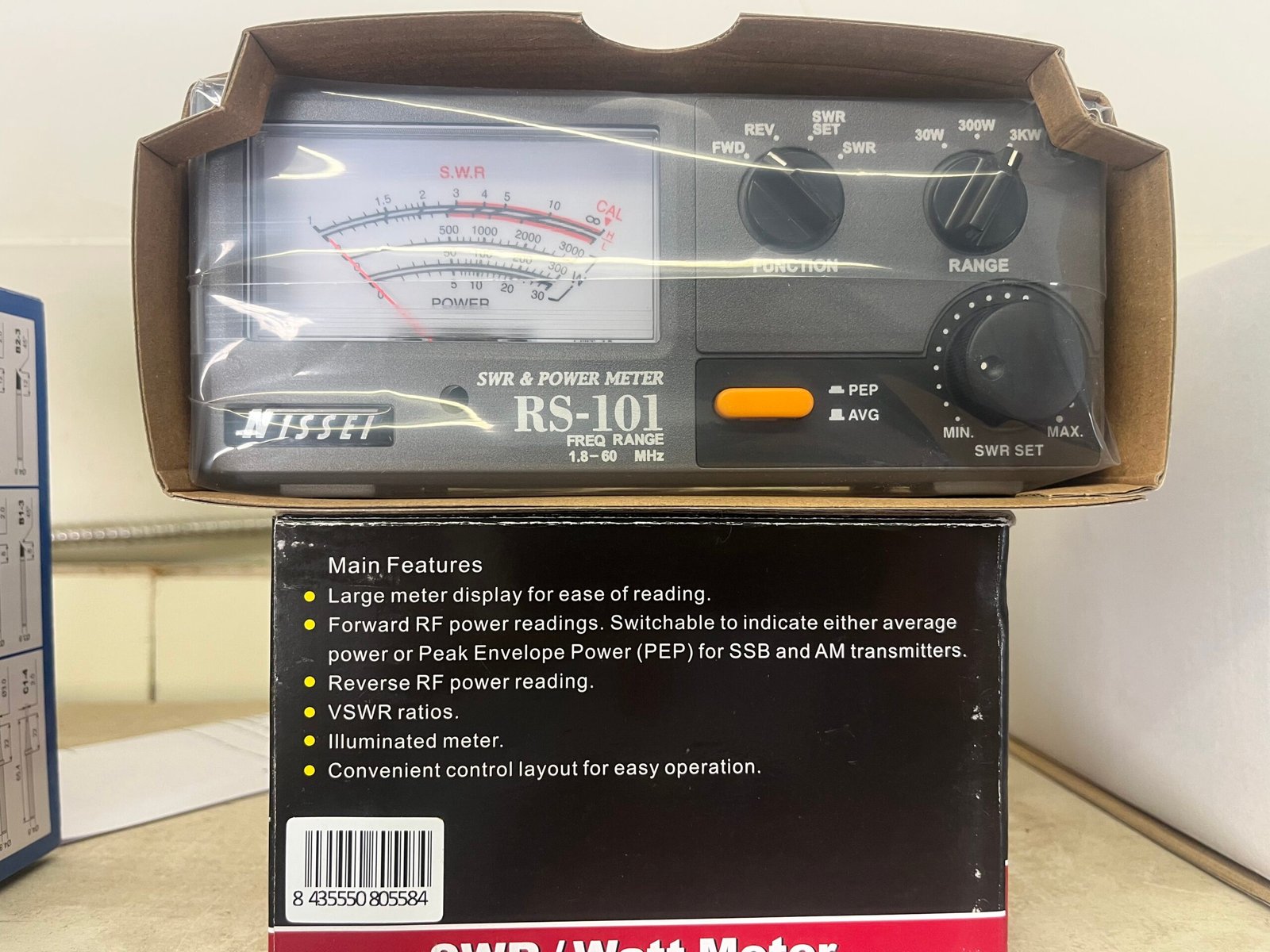

Nissei RS-101 SWR & Power Meter

The Nissei RS-101 is a robust SWR and power meter designed for HF frequencies with a range of 1.6-60 MHz, widely used by amateur radio and CB enthusiasts. It measures forward power, reflected power, and VSWR, and features a large, illuminated analog display for easy reading.
Key Specifications
Attribute Detail
Frequency Range 1.6 – 60 MHz
Power Measurement Switchable 30W / 300W / 3KW ranges
Measurement Functions Forward Power (AVG/PEP), Reflected Power, VSWR
Accuracy AVG: ±5% (300W-3KW), ±10% (30W)
Impedance 50 Ohm
Insertion Loss Less than 0.1 dB
Connectors SO-239 (UHF female) on rear panel
Power Supply 13.8 VDC for display backlight illumination (DC cable supplied)
Dimensions 185 x 80 x 120 mm (approx. 7.3 x 3.1 x 4.7 inches)
Weight Approx. 760g
Features
Large Analog Display: The meter features a large, easy-to-read, illuminated analog display for clear monitoring of readings, even in low-light conditions.
AVG/PEP Mode Selection: A push button on the front allows selection between average power (AVG) and Peak Envelope Power (PEP) readings, specifically useful for SSB and AM transmissions.
Durable Construction: The device comes in a steel housing, contributing to its robust and durable design.
Calibration Knob: A calibration knob is available for adjusting the needle to full scale when measuring VSWR, ensuring accuracy.
