PNI-HAM27

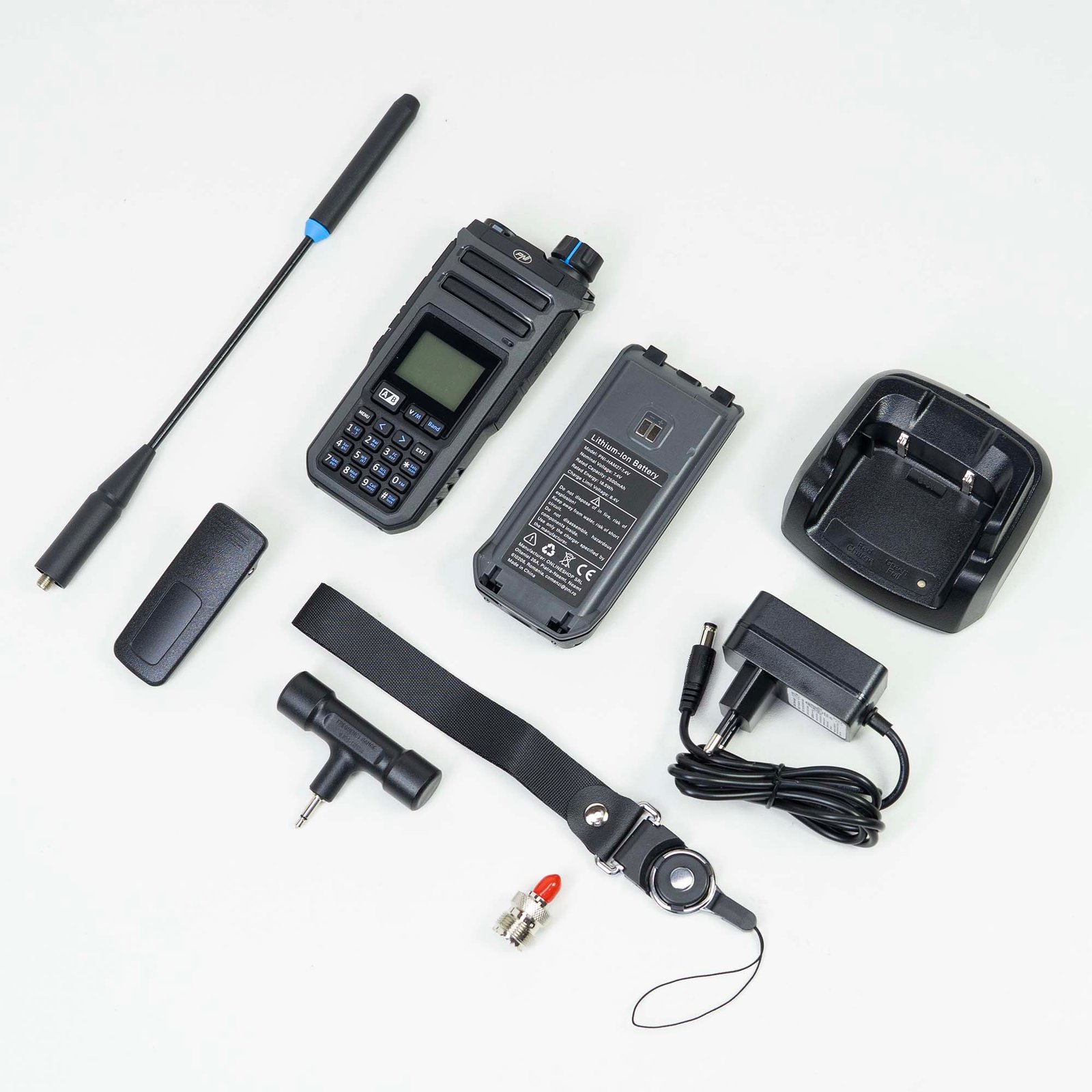

The PNI HAM27 is a portable, multi-band radio scanner designed primarily for receiving (RX) a wide spectrum of frequencies. It is widely used by amateur radio enthusiasts to monitor various radio communications, ranging from aviation bands (Airband) to CB and PMR frequencies. Key Technical Specifications Frequency Coverage: 0.153 MHz to 1160 MHz, providing an exceptionally wide spectrum from low bands up to UHF and beyond. Channels: Up to 999 stored programmable channels. Battery & Power: 7.4V 2500mAh Li-Ion battery, chargeable via its standard docking station or natively via a integrated USB-C port. Audio Output: Features 1W audio power via a 1.44-inch display layout and uses a 2-pin PNI-K type connector for headsets. Antenna Setup: Ships with both an SMA antenna and a 3.5 mm jack antenna, along with an SMA-to-PL adapter. Core Functionality & Features Operating Modes: You can easily toggle between Channel Mode (accessing preset frequencies) and Frequency Mode (VFO). In frequency mode, hitting the # key lets you input a custom frequency directly. Auxiliary Utilities: It features a built-in LED flashlight, channel monitoring toggles, and a standard FM radio function. PC Programmable: Fully customizable via a PC by using the PNI PSR27 Programming Cable to easily manage frequencies and large batches of channels. Transmit Unlock (Modding): While legally sold exclusively as a standard receiver (RX only), radio communities have documented a modification trick (holding the top PTT and VM buttons simultaneously during bootup) which switches the device from “lock on” to “lock off”, unlocking temporary transmission capabilities across certain bands.
