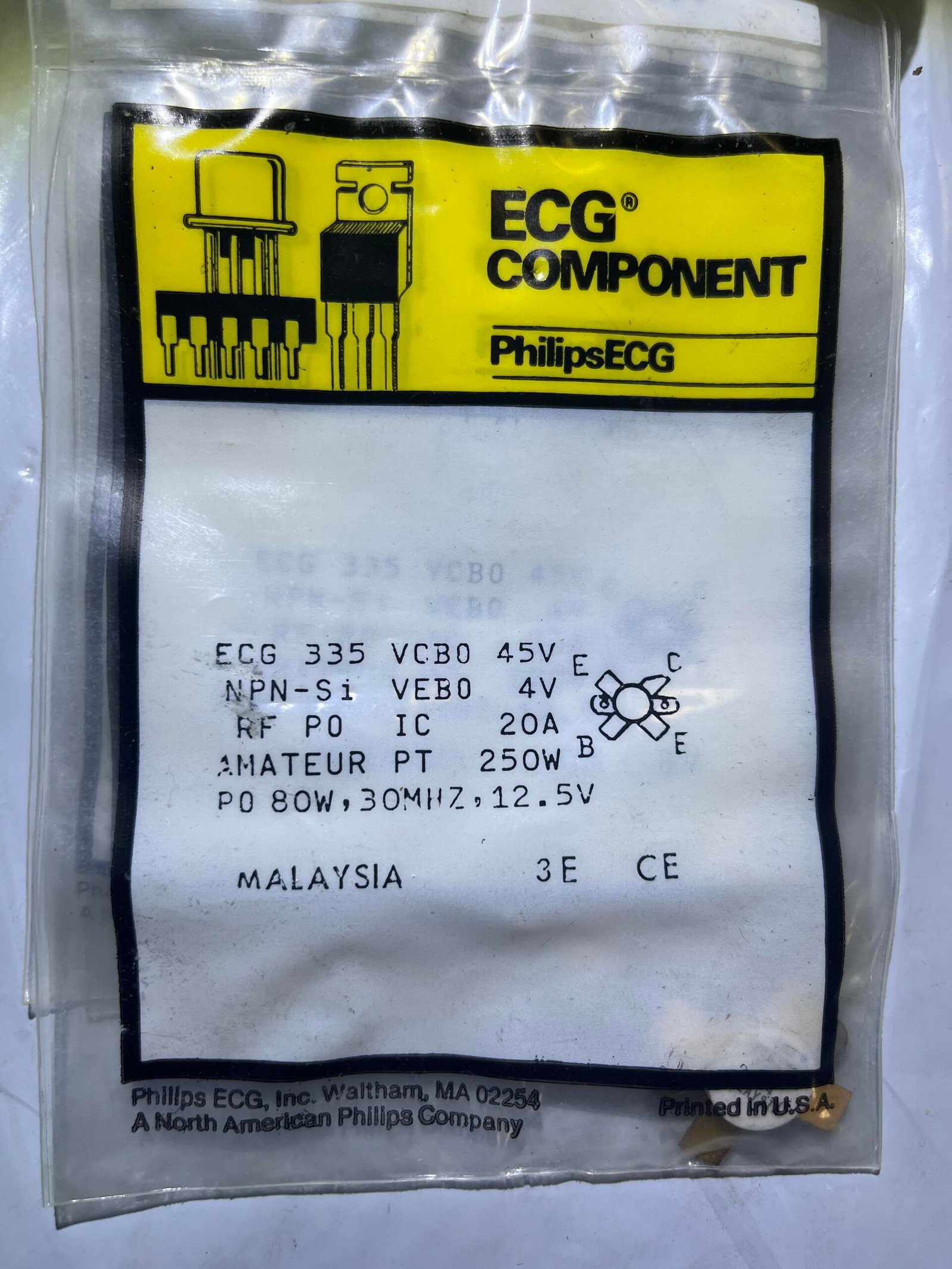

ECG-335 Transistor

Rare **** NEW OLD STOCK

The ECG335 is an NPN silicon RF power transistor designed for amplifier applications in industrial, commercial, and amateur radio equipment operating up to 30 MHz. Its equivalent is the NTE335.
Key Specifications
According to product listings the specifications for the ECG335 (or its replacement, the NTE335) are as follows:
Type: NPN Silicon RF Transistor
Collector-Emitter Voltage (Vceo): 25V maximum
Collector-Base Voltage (Vcbo): 45V
Emitter-Base Voltage (Vebo): 4V
Collector Current (Ic): 20 Amps
Total Device Dissipation (Ptot): 250W
Output Power (Po): 80 Watts at 30 MHz (with 5 W input power at 12.5V supply)
Minimum Gain: 12dB
Case/Package Type: RF-50F
Applications
The ECG335 is primarily used for power amplifier stages in equipment such as:
Industrial radio equipment
Commercial radio equipment
Amateur radio equipment (to 30 MHz)
