Gizmotchy G291

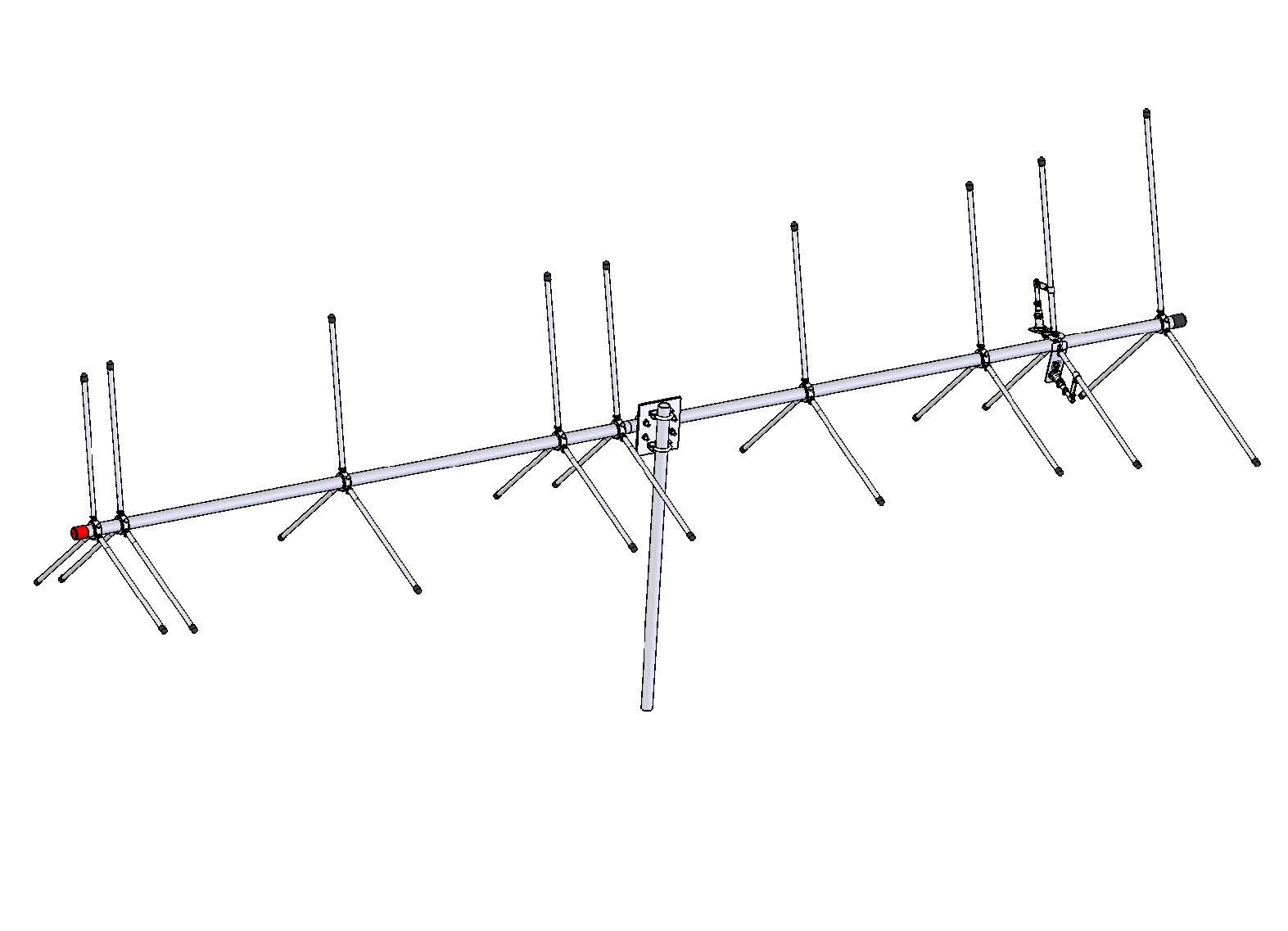

The Gizmotchy G291 is a high-performance 9-element beam antenna designed for the 2-meter (144 MHz) amateur radio band. Manufactured by Charles Electronics, it features a unique directional design that supports both horizontal and vertical polarization.
Technical Specifications
Elements: 9 elements, using an inverted “Y” configuration that sets it apart from standard Yagi antennas.
Boom Length: 11.5 feet with a 1.25-inch outer diameter.
Power Handling: Rated for up to 1,500 watts peak power.
Polarization: Dual polarity; can be switched between horizontal and vertical modes using two separate feed lines and standard gamma matches.
Weight & Wind Load: Weighs 12 lbs with a wind load of 2.5 square feet.
Key Features
Dual Mode Capability: The antenna allows operators to toggle between polarizations with a standard coax switch, making it versatile for different communication needs.
Construction: Built with aircraft-grade 6063-T5 aluminum tubing for durability and a 90 mph wind survival rating.
