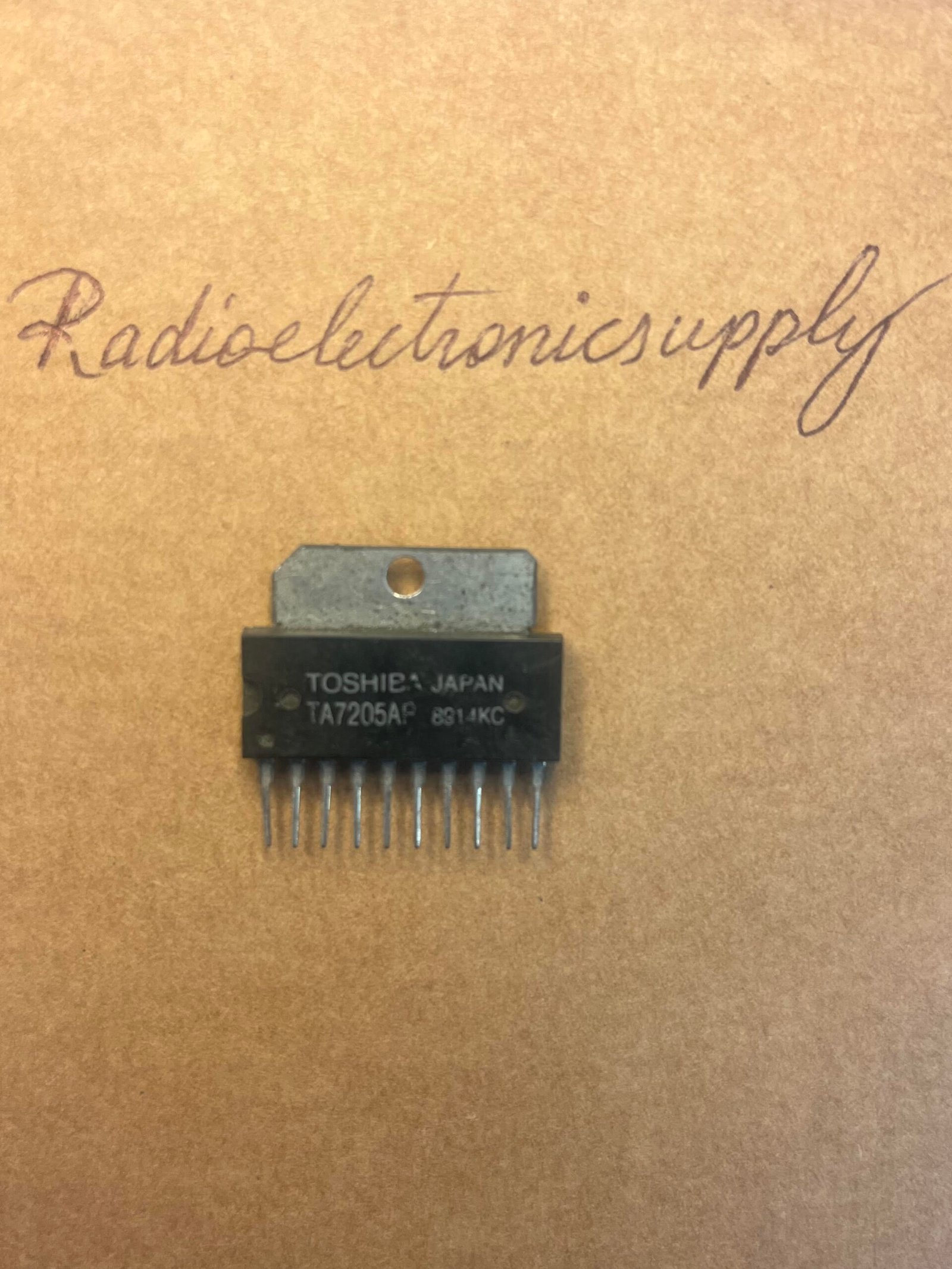

TA7205AP

Rare, **** New Old Stock

The Toshiba TA7205AP is a classic 5.8W audio power amplifier integrated circuit (IC), commonly used in vintage car stereo and radio systems.
Key Specifications
According to the Toshiba datasheet, the TA7205AP has the following specifications:
Output Power: Typically 5.8W at Vcc=13.2V, Rl=4Ω, THD=10%. It can reach a maximum output power of around 9.5W.
Operating Supply Voltage Range: Wide range from 9V to 18V.
Package Type: Comes in a ZIP-10 (Single Inline Package, 10 pins) format.
Low Distortion: Features a total harmonic distortion of around 0.15% at 1W output.
Built-in Protections: Includes internal circuits for current limiting (short-circuit protection), thermal shutdown, and surge voltage protection.
Low Noise: Designed to produce minimal output noise voltage.
Applications and Replacements
The TA7205AP was primarily designed for use in car audio systems, such as older car tape players and radios, due to its robust power output and voltage range.
Equivalent Circuit: The TA7205AP is considered equivalent to the NTE1155 IC.
