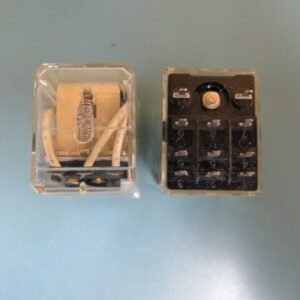

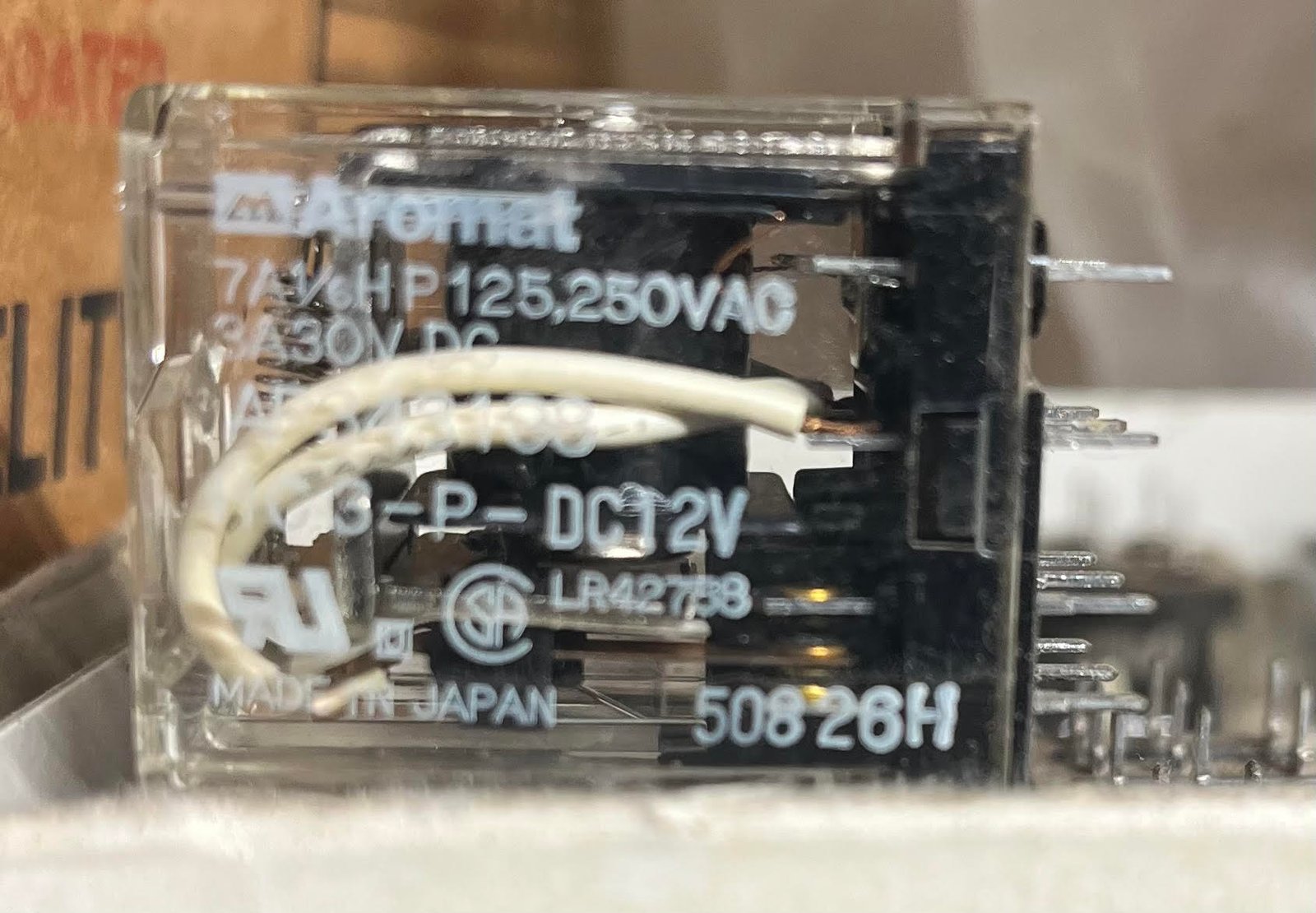

Aromat HC3-P-DC12V 343198 Relay

NOS

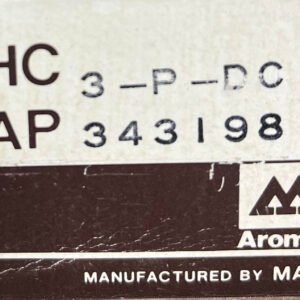

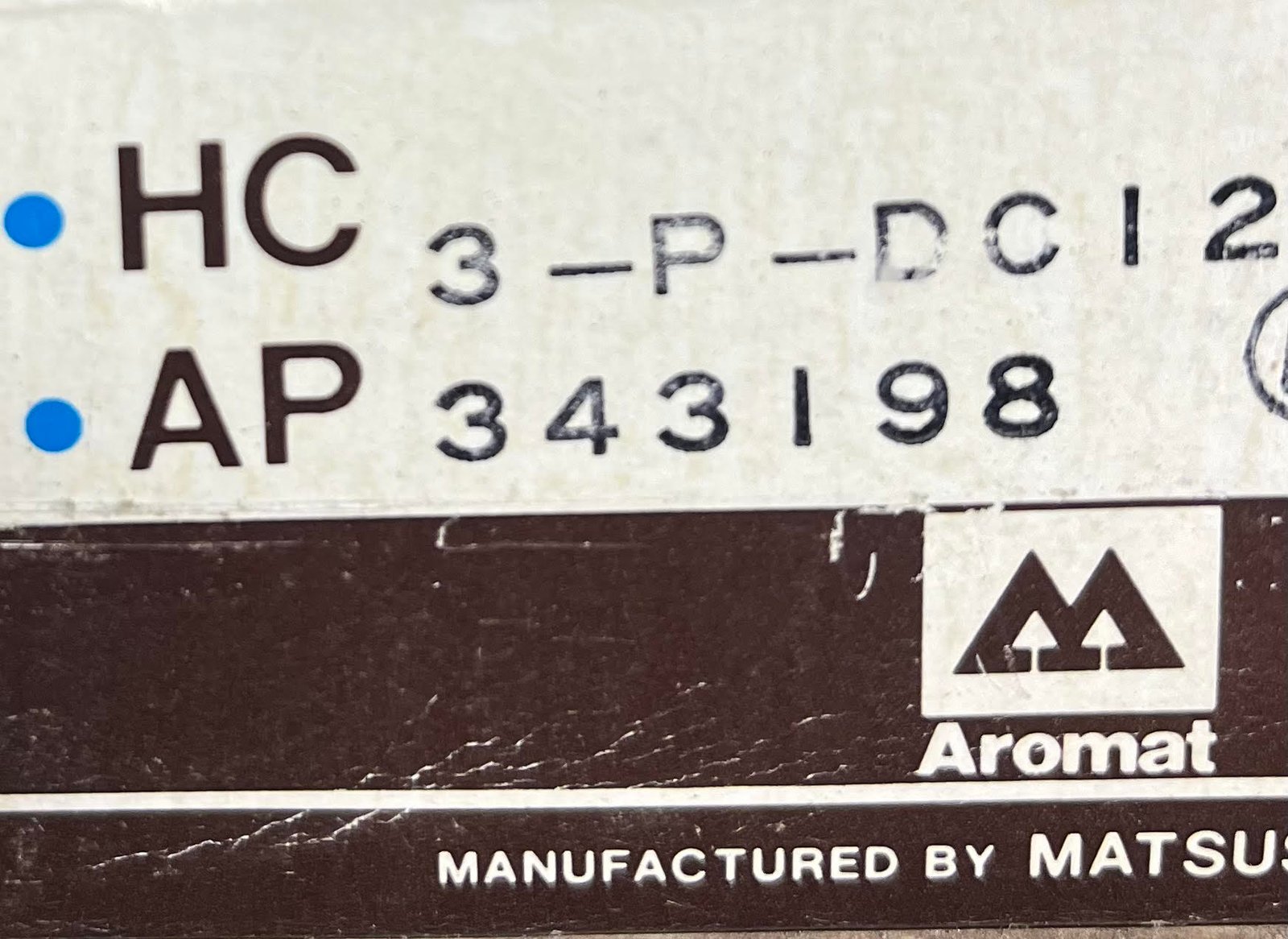

The HC3-P-DC12V relay is a 3PDT (3 Form C), 12V DC general-purpose relay designed for through-hole PC pin mounting. The “343198” is likely a production batch or internal code.
Key Specifications
According to online stores, the primary specifications for the HC3-P-DC12V (which is functionally similar to the obsolete HC3-HP-DC12V part number) include:
Coil Voltage: 12V DC.
Contact Form: 3PDT (3 Form C).
Max Current Rating: 7 A.
Max Switching Voltage: 250V AC.
Mounting Type: Through Hole (PC Pin).
Coil Resistance: 160 Ohms.
Operate Time: 10 ms.
Contact Material: Silver Nickel (AgNi), Gold (Au).
Operating Temperature: -50°C to 70°C.
