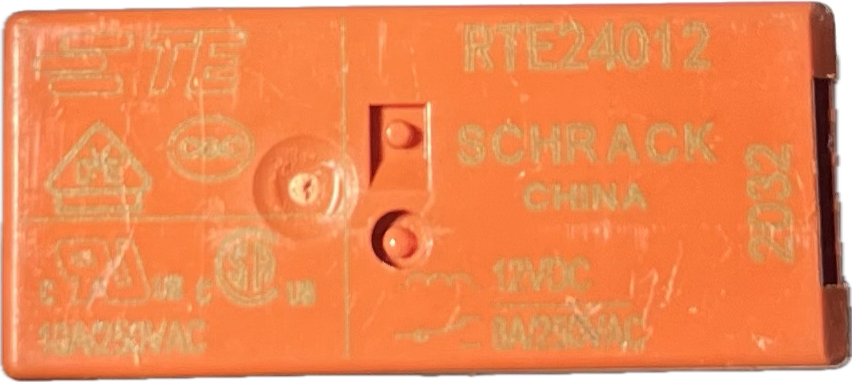

Schrack RTE24012 DPDT Relay

The Schrack RTE24012 is a general-purpose DPDT power relay with a 12V DC coil and an 8A switching current. It is made by TE Connectivity / Schrack and designed for through-hole PCB mounting.
Key Specifications
Attribute Value
Coil Voltage 12V DC
Contact Form DPDT (2 Form C, Double Pole Double Throw)
Max Switching Current 8A
Max Switching Voltage 400V AC (or 250V AC nominal), 30V DC nominal
Coil Power 400 mW
Coil Resistance 360 Ω
Mounting Through Hole PCB (Solder Pin terminals)
Dimensions 29 mm (L) x 12.7 mm (W) x 15.7 mm (H)
Approvals UL, CSA, VDE
Operating Temperature -40 to 85°C
Applications
This relay is suitable for a wide range of applications due to its reinforced insulation and robust design. Typical uses include:
Domestic appliances
Heating control systems
Emergency lighting
Timer and modem applications
POS (Point of Sale) automation
Interface modules
